Description
L30.4Open space for living

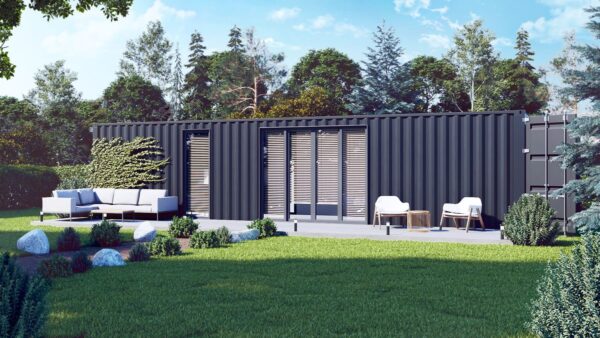

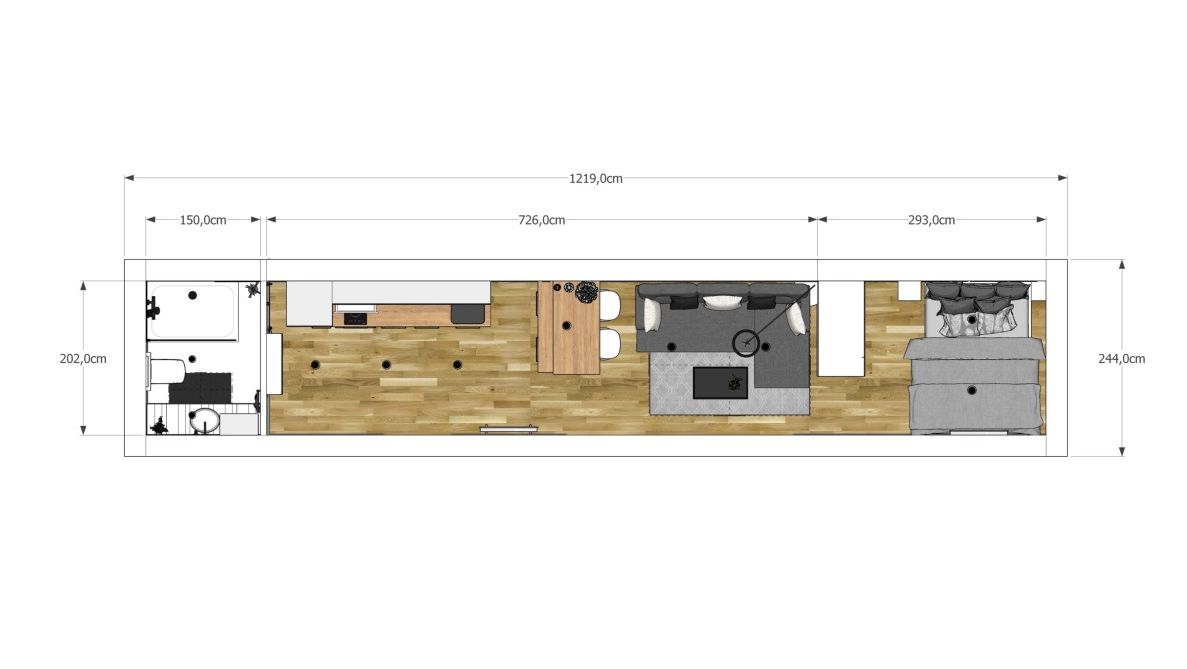

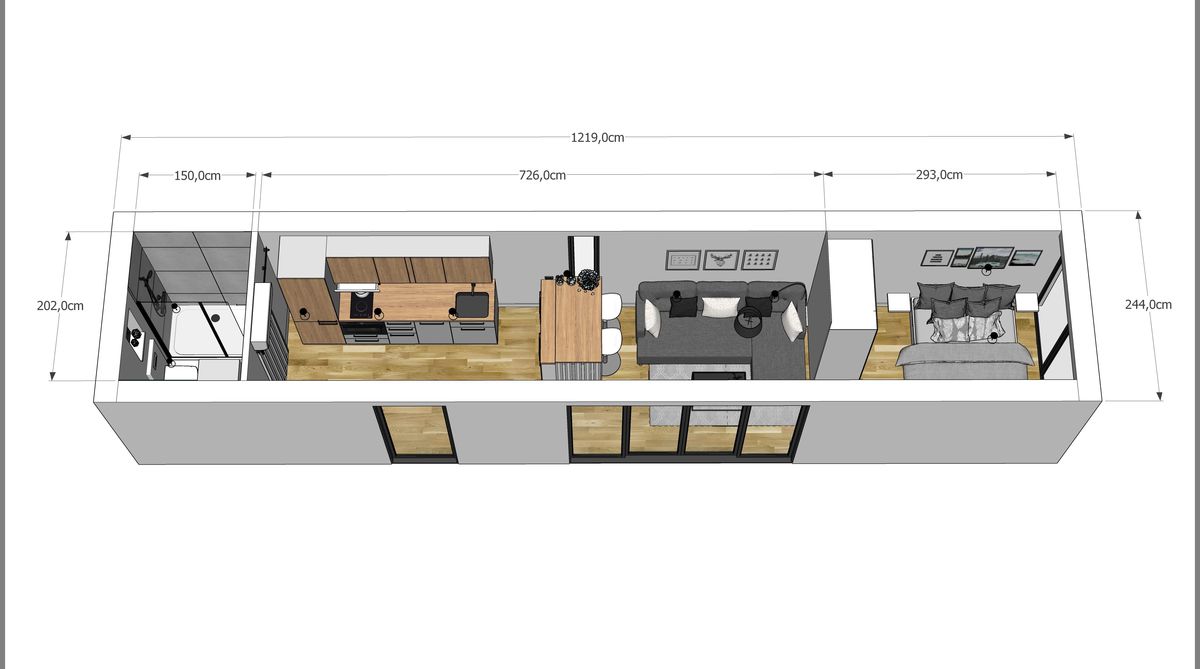

L30.4 is a design based on the new 40FT HC shipping container
- 5External dimensions: 2.44 x 12.19 x h 2.89 m, built-up area 29.8 m².
- 5Internal dimensions: 2 x 11.80 x h 2.45 m, internal area 23.6 m²

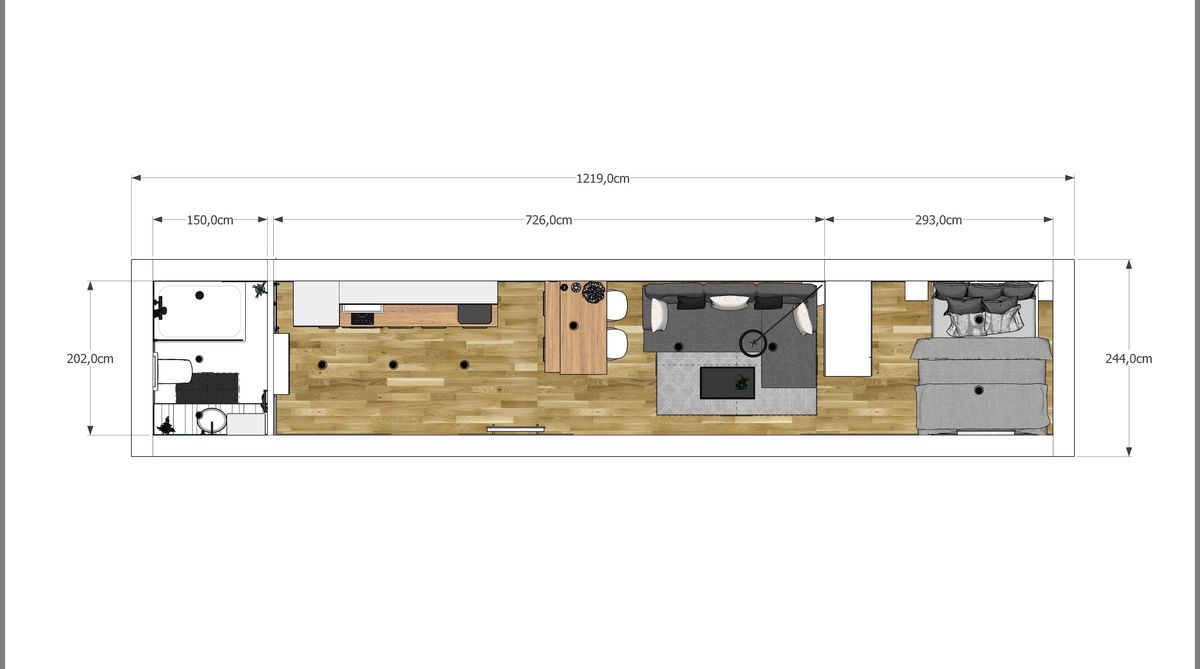

- 5Rooms: living room with kitchenette 14.7 m², bedroom 5.9 m², bathroom 3 m²
SCOPE OF CONTAINER ADAPTATIONshell
NEW SHIPPING CONTAINER (ONE WAY)
The container adaptation is made on a new 40 HCone way container. The shipping container is made of weathering steel from weathering steel. The weathering steel has been specially designed and developed to minimise corrosion in the very harsh atmospheric conditions found in the marine environment
MODIFICATION OF CONTAINER DESIGN
Cutting and removal of wall elements from container sheet metal to prepare the structure for the installation of windows and doors. Prefabrication and welding with high quality welds. Accuracy and high aesthetics of the work carried out.
THERMAL ISOLATION
Roof and walls spray-insulated with closed-cell polyurethane foam, 80-100 mm thick. Walls additionally insulated with mineral wool, 50 mm thick. Partition heat transfer coefficient U 0.16-0.18 [W/(m2•K)]. Floor insulation with closed-cell polyurethane, 50 mm thick. Partition heat transfer coefficient U 0.30 [W/(m2•K)]. Floor insulation with closed-cell polyurethane, 50 mm thick. Partition heat transfer coefficient U 0.30
ANTHRACITE-COLOURED WINDOW AND DOOR JOINERY
As standard, a 3-glazing package with a heat transfer coefficient of Ug = 0.7 [W/(m2•K)]. 5-chamber frame and sash profiles made of PVC in A class. Available with toughened, safety, anti-burglary or solar control glass.
ELECTRICAL INSTALLATION
Flush-mounted, fittings (switchboard, sockets, connectors).
PLUMBING
Flush-mounted, welded PP, PVC sewer pipe. Connections in the floor outside the container
WALL AND CEILING FINISHES
Internal steel and wood construction of walls and ceilings, plasterboard construction, surface finished with a plasterboard and painted.
EXTERIOR PAINTING
Container hydrodynamically painted with alkyd or polyurethane paint.
ACCESSORIES

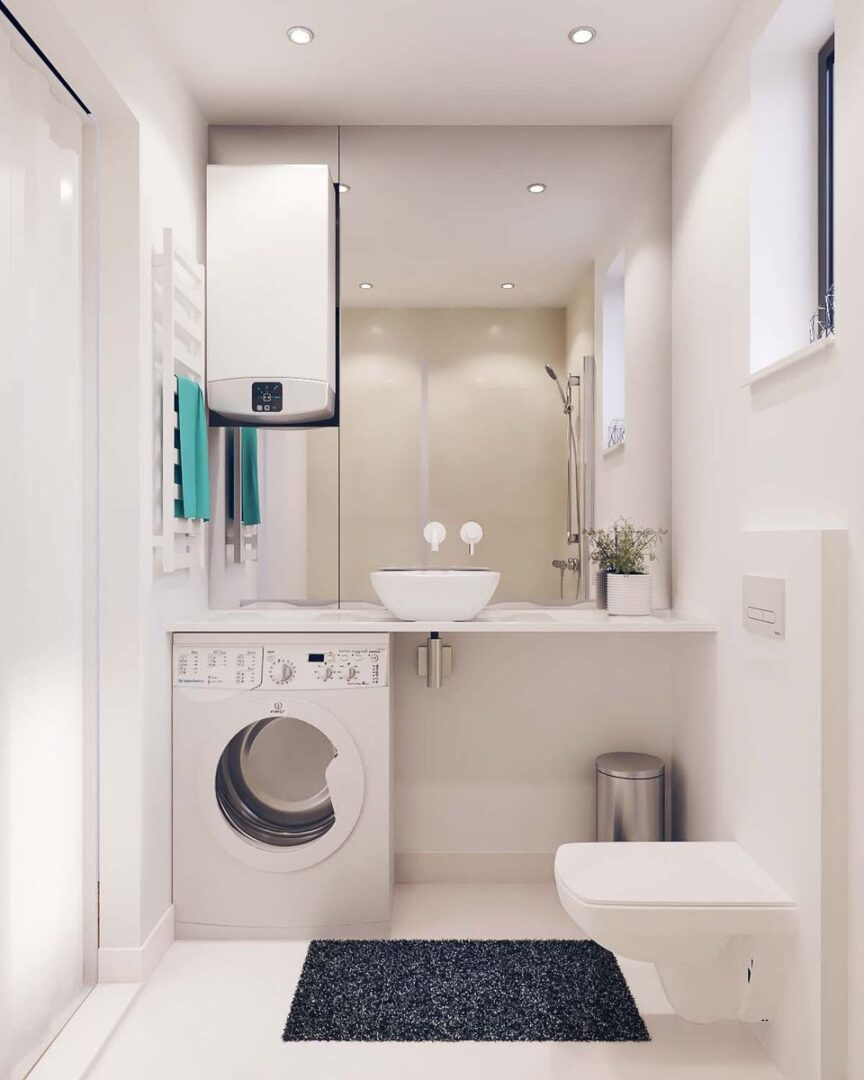

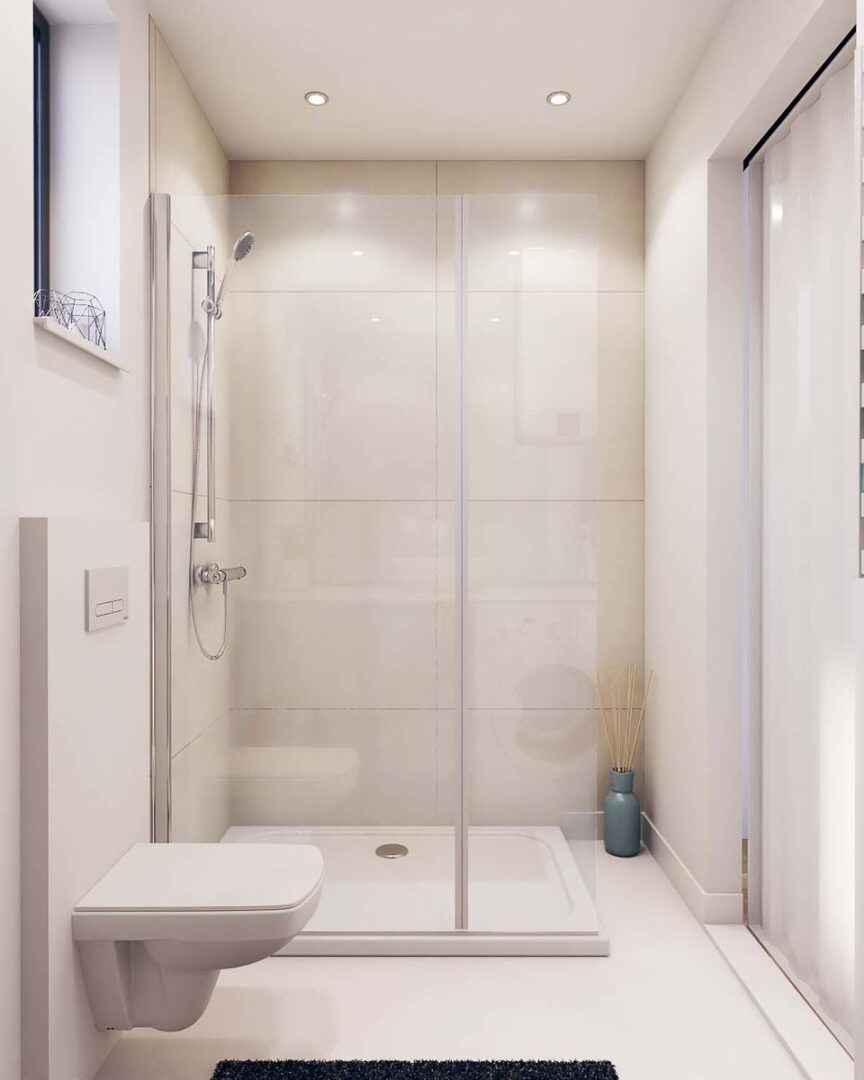

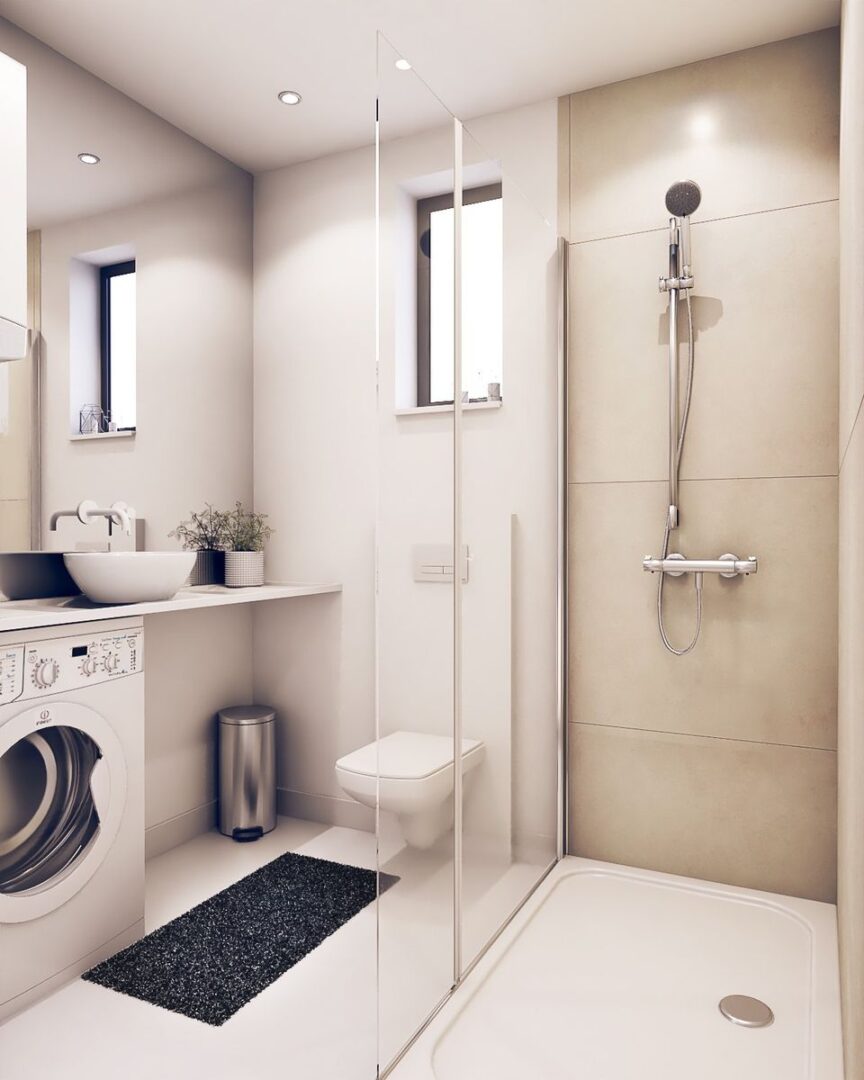

BATHROOM
30L water heater, 120×80 shower tray, shower cubicle, thermostatic shower mixer, bathroom countertop (laminate), mirror, pedestal washbasin, concealed washbasin mixer, lavatory seat with concealed rack, flush or sliding door on container sheet metal track, bathroom radiator.

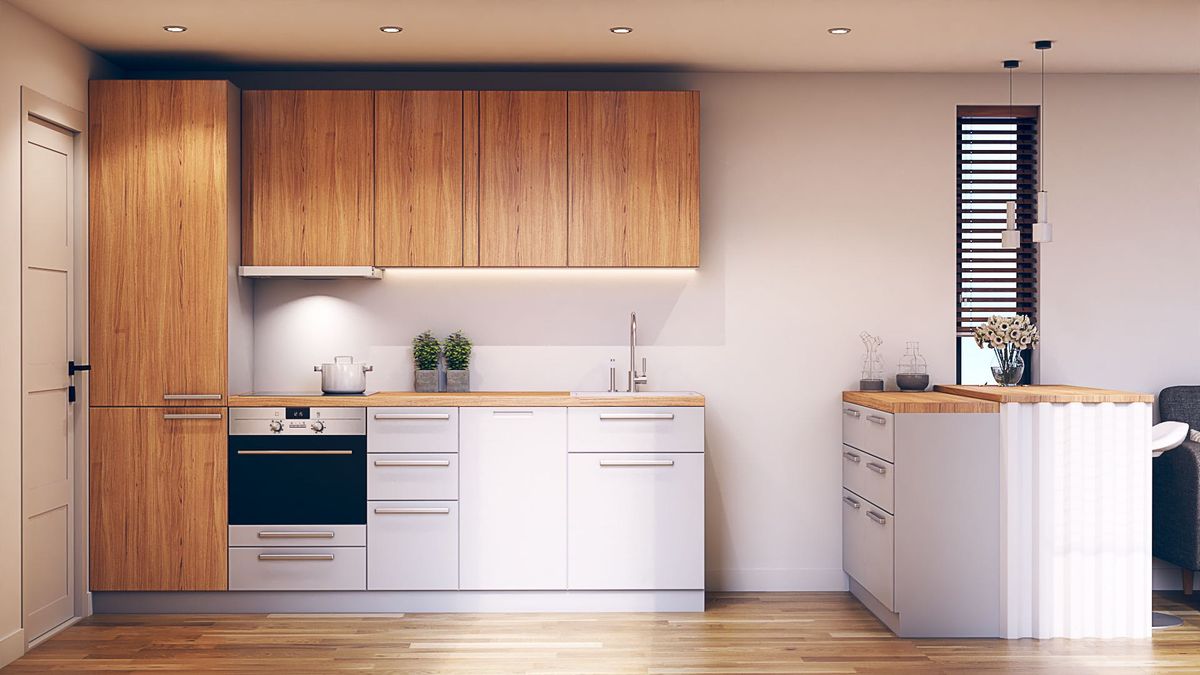

KITCHEN
IKEA EKESTAD (oak) + METOD (white) kitchen furniture, microwave and oven in one, fridge-freezer 180 cm, induction hob, extractor hood, sink, IKEA METOD kitchen island with steel support + 2 hockers

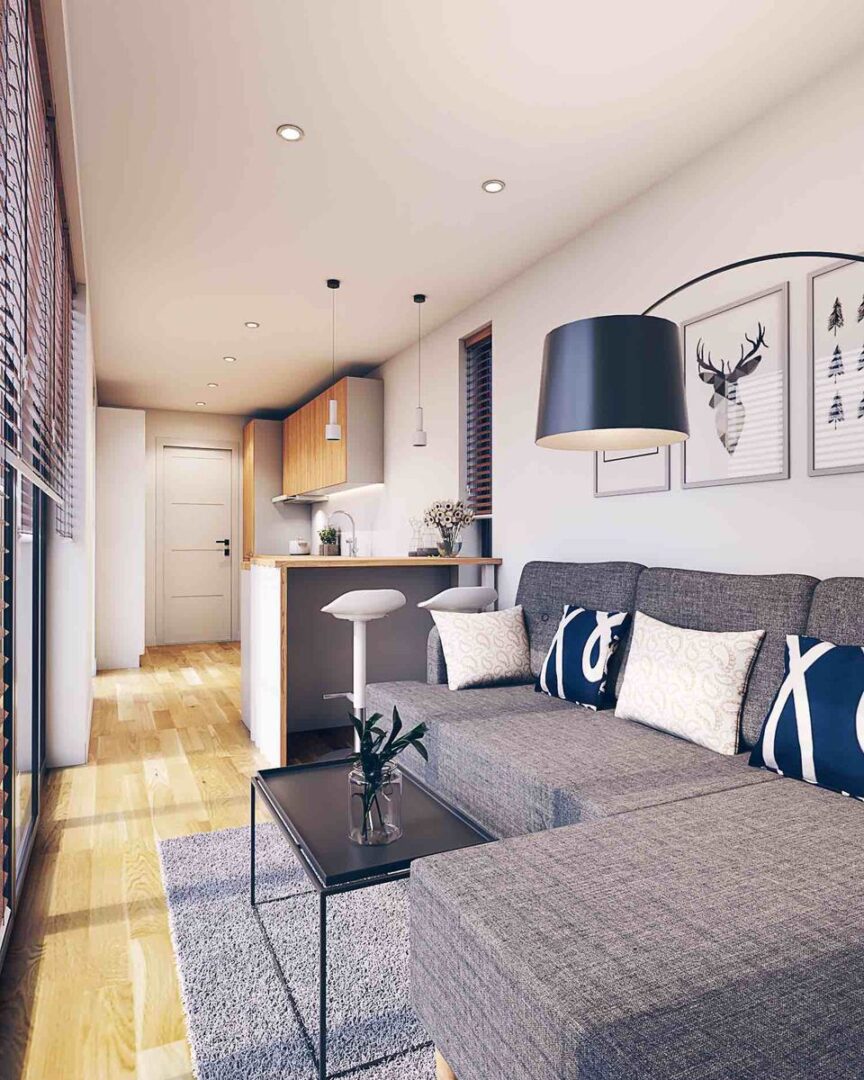

LOUNGE
IKEA BASTUBO corner sofa bed

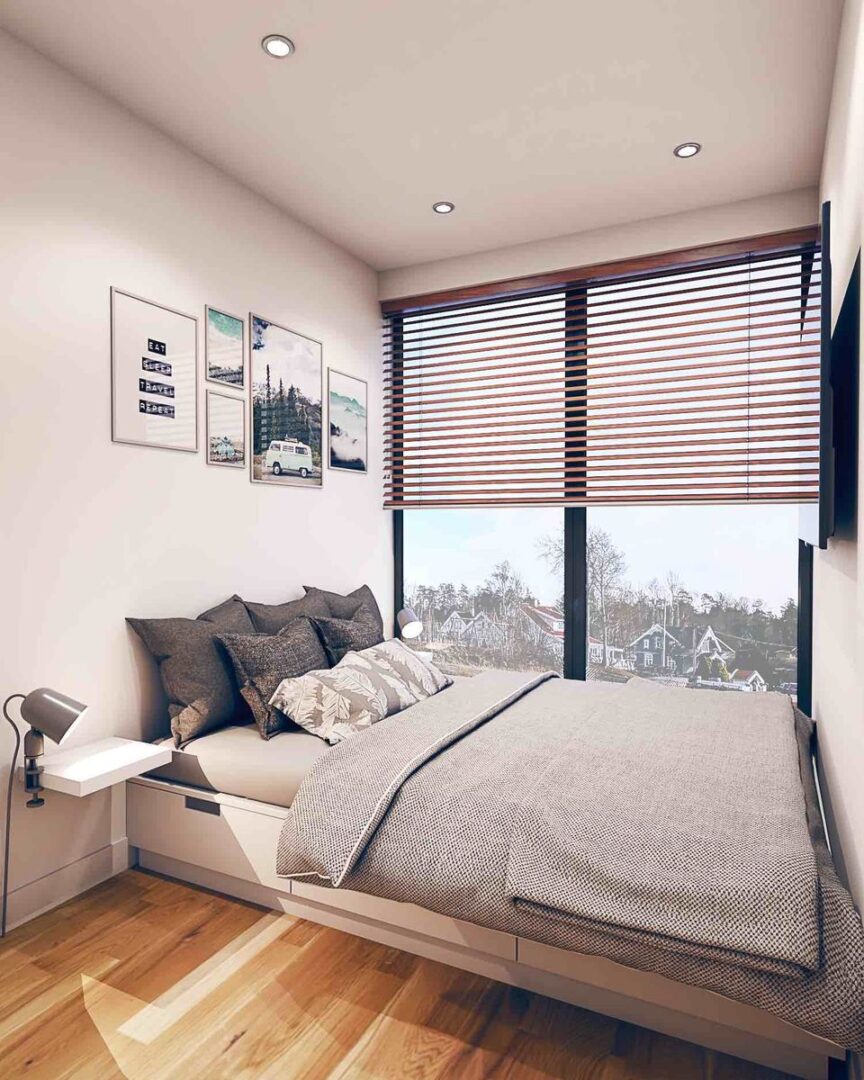

BEDROOM
Bed 140 cm with drawers
AIR CONDITIONING
Haier 5 kW air conditioning with heating function
FLOOR
Vinyl panels, 10cm MDF skirting boards
LIGHTING
Indoor and outdoor LED
ADDITIONAL INFORMATION
The building has insulation parameters at the level of a traditional single-family house. Our insulation provides comfortable living conditions
