Description
L15XL OfficeOpen space for work

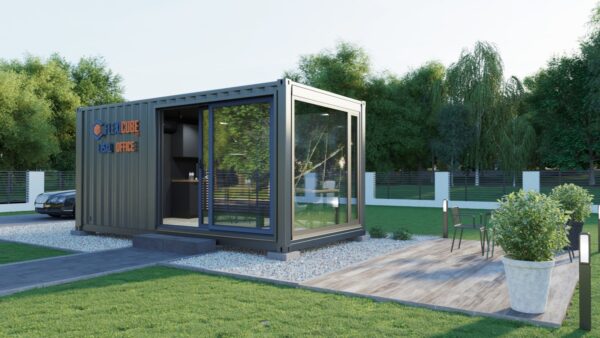

The L15XL Office is an adaptation of the new 20FT HC shipping container widened to 3m.

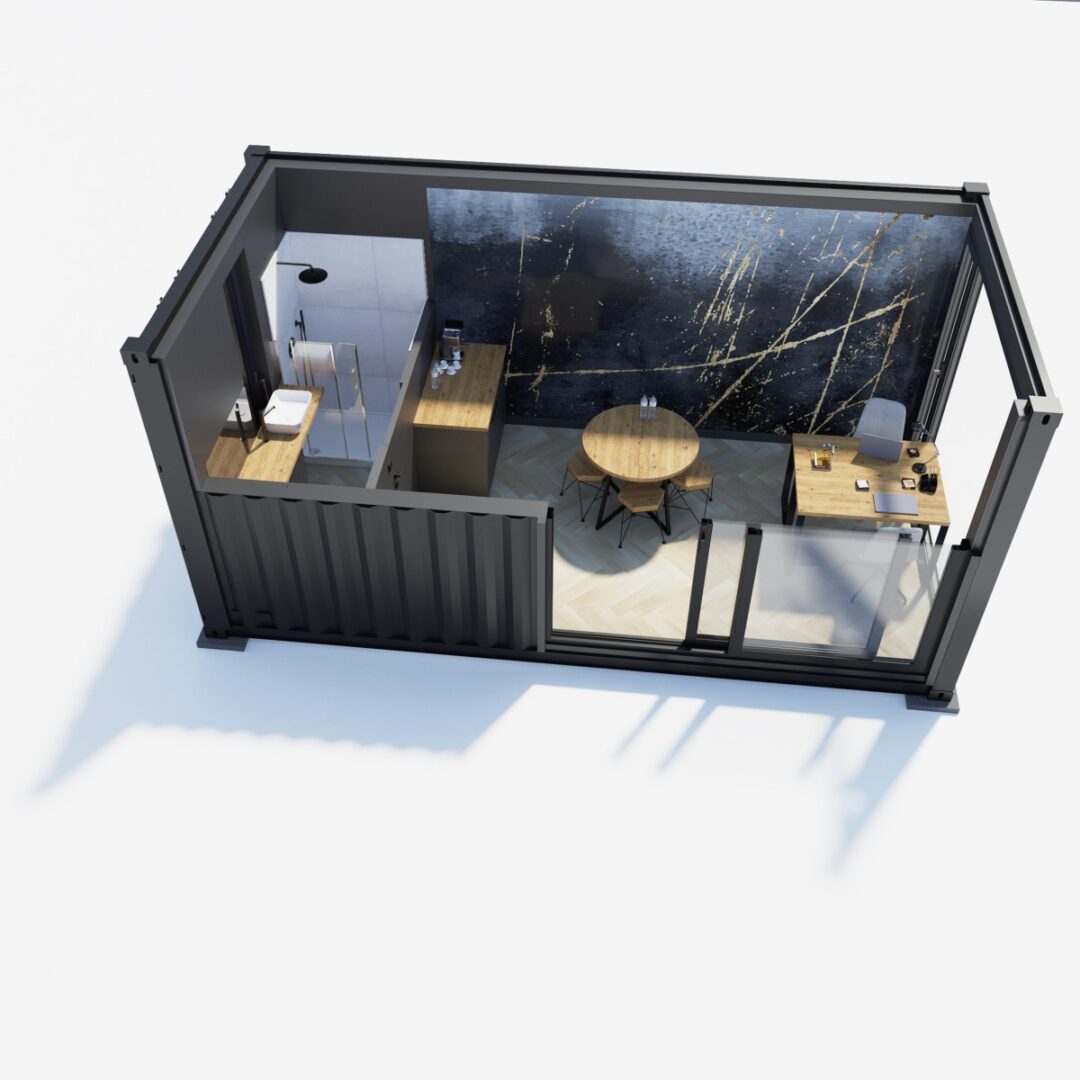

- 5External dimensions: 3 x 6,06 x h 2,89 m, building surface 18,18 m².
- 5Internal dimensions: 2,55 x 5,60 x h 2,45 m, internal surface 14,28 m².

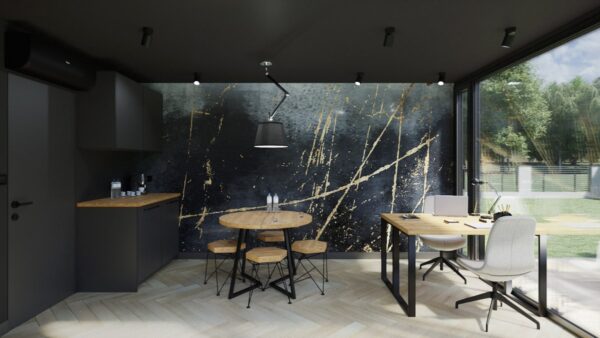

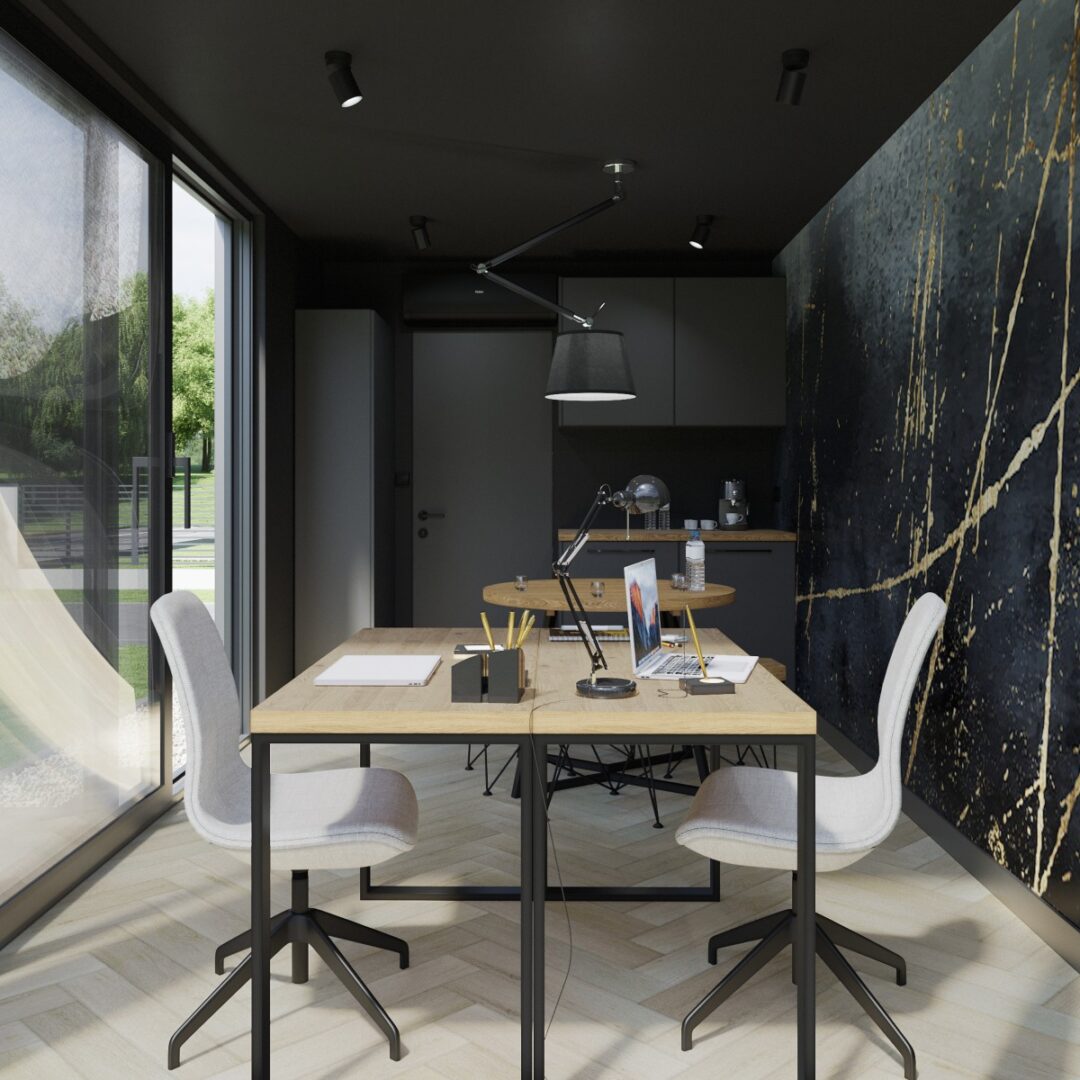

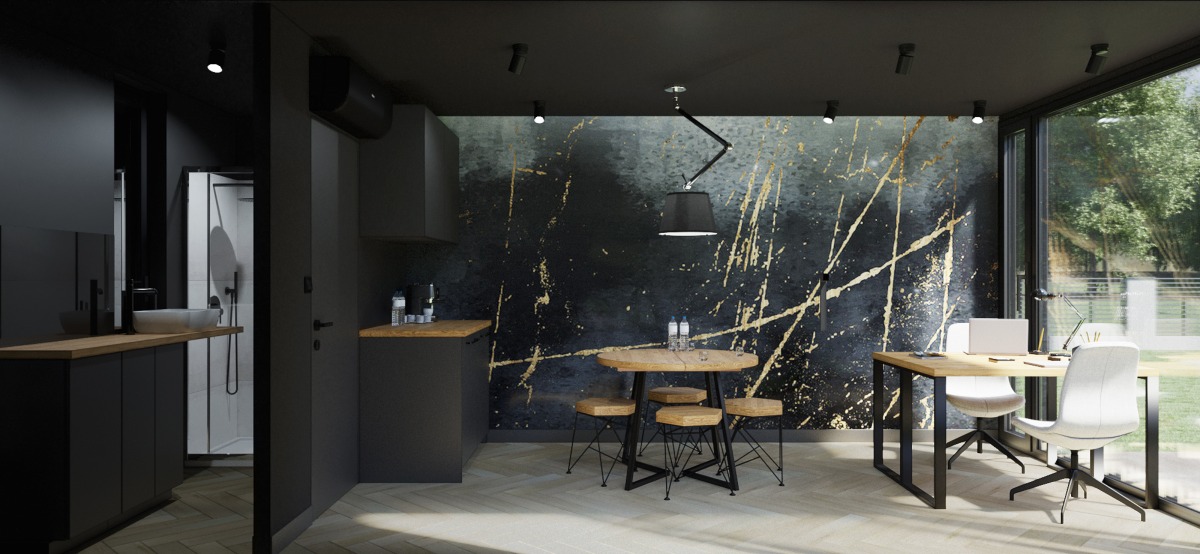

- 5Rooms: office with kitchenette 11,22 m2, bathroom 3,06 m2.
CONTAINER ADAPTATION SCOPEto development state
NEW SHIPPING CONTAINER (ONE WAY)
The container adaptation is made on a new 20FT HC one way container. The shipping container is made of weathering steel from weathering steel. The weathering steel has been specially designed and developed to minimise corrosion in the very harsh atmospheric conditions found in the marine environment.
MODIFICATION OF CONTAINER DESIGN
Cutting and removal of wall elements from container sheet metal to prepare the structure for the installation of windows and doors. Prefabrication and welding with high quality welds. Accuracy and high aesthetics of the work carried out.
THERMAL ISOLATION
Roof and walls spray-insulated with closed-cell polyurethane foam, 80-100 mm thick. Walls additionally insulated with mineral wool, 50 mm thick. Partition heat transfer coefficient U 0.16-0.18 [W/(m2•K)]. Floor insulation with closed-cell polyurethane, 50 mm thick. Partition heat transfer coefficient U 0.30 [W/(m2•K)].
ANTHRACITE-COLOURED WINDOW AND DOOR JOINERY
As standard, a 3-glazing package with a heat transfer coefficient of Ug = 0.7 [W/(m2•K)]. 5-chamber frame and sash profiles made of PVC in A class. Available with toughened, safety, anti-burglary or solar control glass.
ELECTRICAL INSTALLATION
Flush-mounted, fittings (switchboard, sockets, connectors).
PLUMBING
Flush-mounted, welded PP, PVC sewer pipe. Connections in the floor outside the container
WALL AND CEILING FINISHES
Internal steel and wood construction of walls and ceilings, plasterboard construction, surface finished with a plasterboard and painted.
EXTERIOR PAINTING
Container hydrodynamically painted with alkyd or polyurethane paint.
ADDITIONAL EQUIPMENT
BATHROOM

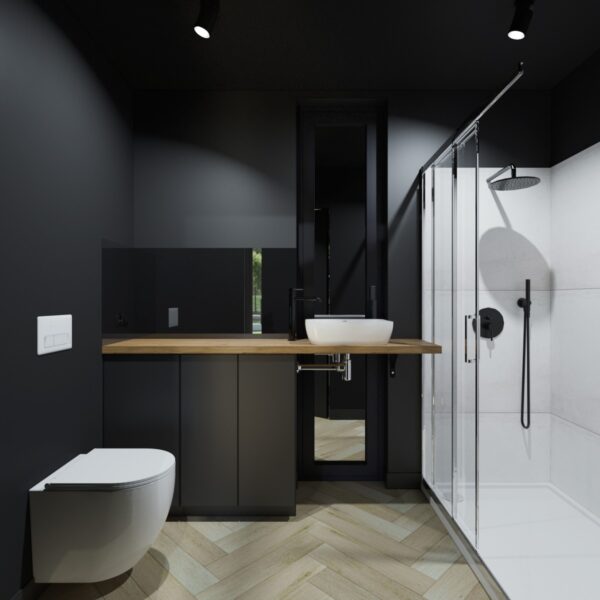

15L water heater, 120×80 shower tray, shower enclosure, thermostatic shower mixer, bathroom countertop (laminate), REA washbasin, washbasin mixer, lavatory seat with concealed casing, door, bathroom radiator
KITCHEN 140 cm
IKEA EKESTAD (ash) + METOD or KUNGSBACKA kitchen unit, fridge-freezer 91l
AIR CONDITIONING
3.5 kW Haier air conditioning with heating function
FLOOR
Vinyl panels, skirting boards MDF white 10cm
LIGHTING
Indoor and outdoor LED
ADDITIONAL INFORMATION
The building has insulation parameters at the level of a traditional single-family house. Our insulation provides comfortable living conditions
